道路車輛電氣電子部件磁場抗擾度試驗?zāi)芰︱?yàn)證的研究

  • 打印
  • 收藏
收藏成功


打開文本圖片集

中圖分類號:U463.68 文獻標識碼:A 文章編號:1003-8639(2025)06-0168-03

Studyon the Proficiency Testingof Magnetic Field Immunityof Electronic and Electrical Components of Road Vehicles

Shao Huadong,ZhangNing,Tu Zhichao,Guo Jintian,Chen Gengwen(CVCTesting Technology Co.,Ltd.,Guangzhou 510663,China)

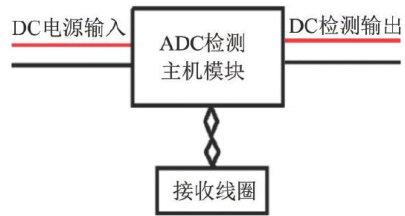

【Abstract】Based on the proficiency testing of magnetic field immunitytest capability of electricaland electronic components ofroadvehicles,this papercarries outtheverification schemeand sampledesignofradiation-ring method capabilityaccording tothestandardsof ISO11452-8and GB/T33014.8.Therelevanttechnical problemsarediscussed, anditisproposedthatthereceivingcoilisusedtoreceivethemagneticfield interferencesignalatadistanceof5cm fromtheradiationring,andtheACsignal isconvertedintoDCvoltagebyADCsampling technology.Thedesignscheme isconsistentwith theactual magnetic field immunityarrngementand testscheme.Inorder toverify thequalityof the sample,theuniformityandstabilityof thesample were testedandanalyzed.Aftersample deliveryandcapability verification,statisticalalgorithmswereusedtoefectivelyidentifythelaboratorywithunsatisfactoryresults.Forthiskind oflaboratory,thereasons fortheunsatisfactoryresultsare deeplyanalyzed,and thecoresponding improvement suggestionsareput forward fromthe technical point of view.

【Keywords】 proficiency testing;magnetic field immunity;receiving coi

0 引言

目前,國內暫無機構開展過道路車輛電氣電子部件磁場抗擾度試驗的能力驗證,開發此項目,將實現國內在汽車電磁兼容領域零的突破,為后續開展電磁兼容抗擾度領域的項目打下基礎。(剩余3889字)
