一種基于BCM控制的迎賓燈效系統設計方案

打開文本圖片集

中圖分類號：U463.65 文獻標識碼：A 文章編號：1003-8639（2025）06-0109-02

ADesign SchemeofWelcomeLightEffectSystemBased on BCMContro

LiMinhao，LaiRuifu，Chen Haidong，XuWei

（Automotive EngineeringResearch Institute，Guangzhou Automobile GroupCo.，Ltd.，Guangzhou511434，China）

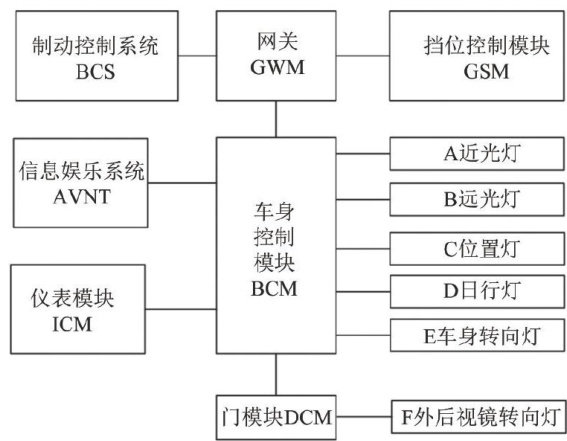

【Abstract】This paper systematicaly expounds the architecture scheme and design principle of the welcome light efect of thebody control module（BCM），analyzes the interaction logic of BCMand instrument module（ICM）in the lighteffectcontrol，and introduces thecomposition of common welcome light efect.In termsof architecture design， BCM，as thecoreunitof theefectcontrolof the welcomelight，accuratelycontrols the lightingonandoff and the combination modeaccording to various inputsignals.Atthe levelof interaction logic，BCMand ICMwork togetherto efectivelypreventtheabnormalpromptoftheinstrumentduring theexecutionofthelampeffect.Datainteractionwith infotainment system AVNTtorealize thepersonalizedsettng oflightefect；Combined withthedoor module DCM，the externalrearviewmirrorturnsignalisincorporatedintothelightefectsystem；ThroughthegatewayGWM，thespeed signalof the brakecontrol system BCSand the gear signalof thegearcontrolmodule GCMarereceived toensure that the welcomelightefectisactivatedonlywhenthevehicleisinPgearand thespeed iszero.Inaddition，various typesof headightssuch as low lightand high beam lightcreateadiversifiedwelcome light efectthrough diferentcombinationsof light and off.

Keywords】 body controller；welcome light effect；interactive logic；system design schem

0 引言

汽車智能化與電動化已成為目前汽車行業的發展潮流。（剩余1880字）
